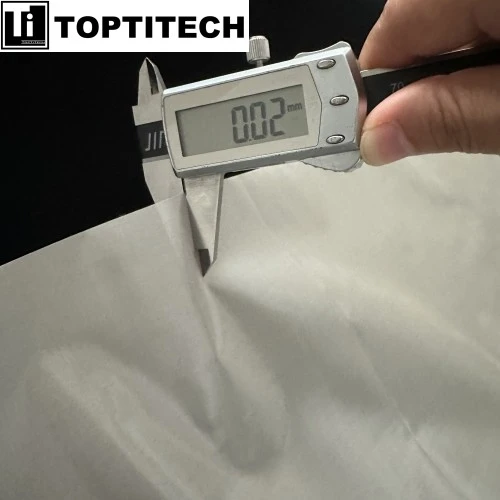

0.02mm Ultra-Thin Stainless Hlau Woven Mesh Rau Gas Purification
video
0.02mm Ultra-Thin Stainless Hlau Woven Mesh Rau Gas Purification

0.02mm Ultra-Thin Stainless Hlau Woven Mesh Rau Gas Purification

Khoom siv: 316L
Qhov siab: 635
Weave: Plain weave
Loj: 310 * 310 * 0.02mm
Xa kev nug
Khoom Taw qhia

Stainless hlau woven mesh yog ib qho kev daws teeb meem rau cov pa purification, crafted los ntawm interweaving stainless hlau nyob ntawm tej rau hauv cov qauv kab kos. Muaj nyob rau hauv cov ntaub ntawv xws li 304 thiab 316 stainless hlau, nws ua tau zoo nyob rau hauv hnyav ib puag ncig vim nws tsis kam mus corrosion, kub kub, thiab tshuaj lom neeg raug. Hom weave muaj xws li dawb, twill, thiab Dutch weave ​​, nrog mesh qhov ntau thiab tsawg ntawm 5 txog 630 ​​, ua kom pom kev pom zoo rau cov khoom me me li 10μm.



Hauv kev ntxuav cov pa, cov mesh no yog tsim rau kev tshem tawm cov plua plav, kua qaub sib cais, thiab siab - qhov kub thiab txias . Piv txwv li, nws ntes cov khoom zoo hauv cov pa roj av, cais cov pos huab hauv sulfuric acid ntau lawm, thiab tiv taus cua sov hauv catalytic cracking units. Nws cov durability, yooj yim txij nkawm, thiab customizable designs ​​(xws li, multilayer configurations) ua rau nws haum rau industrial xav tau, kom ntseeg tau npaum thiab ntev -lub sij hawm gas kev kho mob.



Khoom Specifications



Khoom siv: 316L
Qhov siab: 635
Weave: Plain weave
Loj: 310 * 310 * 0.02mm
Hlau txoj kab uas hla: 0.01mm
Daim ntawv thov: Gas Purification



Khoom nta
002mm Ultra-Thin stainless steel woven mesh for gas purification 2

1. Consistent Particle Capture Efficiency
Cov qauv pore tsis sib xws ntawm woven mesh kom ntseeg tau tias kev tshem tawm cov plua plav, aerosols, thiab cov khoom zoo los ntawm cov dej ntws, uas yog qhov tseem ceeb rau cov txheej txheem qis qis.

2. Stable Flow Distribution
Lub mesh tsim txhawb nqa txawm tias roj ntws, txo qis kev kub ntxhov thiab kev poob siab thaum ua kom muaj kev sib cuag ntau tshaj plaws rau kev ua kom huv.

3. Precision tswj cov qib lim
Los ntawm kev xaiv weave hom thiab mesh suav, TOPTITECH tuaj yeem kho qhov kev ntes tau zoo los ntawm kev sib cais sib cais mus rau sub-micron particle retention, ua rau nws hloov tau rau ntau yam kev xav tau ntawm cov pa purification.



002mm Ultra-Thin stainless steel woven mesh for gas purification 5

4. Tsis kam rau Clogging hauv Gas Media
Piv nrog cov fibers lossis ntawv lim, woven mesh tso cai rau cov khoom khaws cia feem ntau ntawm qhov chaw. Hom kev lim dej saum npoo no txo ​​qhov txhaws tob thiab txuas ntxiv cov kev pabcuam.

5. Dimensional Flexibility rau Gas Systems
Stainless hlau woven mesh yuav fabricated rau hauv cartridges, cov ntxaij vab tshaus, demisters, los yog multilayer packs tailored rau tej roj purifiers, scrubbers, los yog pipelines.

6. Multi-Phase Separation Peev Xwm
Tshaj li cov khoom sib cais ntawm cov roj sib cais, cov woven mesh zoo ntes cov kua dej (roj pos huab, dej condensate) entrained nyob rau hauv roj, muab dual-theem purification nyob rau hauv ib tug nruab nrab.

daim ntawv thov



1. Petrochemical FCC Chav Nyob
Catalyst Retention ​​: 5-heddle weave mesh captures ​​zoo catalyst hais (5-50μm) nyob rau hauv cov kua catalytic cracking (FCC) units, tiv thaiv downstream khoom puas.
Acid Gas Scrubbing ​​: 316L mesh lim H₂S thiab SO₂ hauv cov tshuaj amine thiab Claus cov txheej txheem.



2. Fais fab nroj tsuag SCR Systems
Fly Ash Lim: 304 twill weave mesh khaws cov hmoov tshauv ya nyob rau hauv xaiv catalytic txo (SCR) systems rau NOx txo.
Syngas Cleaning : 310S mesh withstands thermal cycling nyob rau hauv thee / biomass gasification.



3. Cement Plant Flue Gas Desulfurization (FGD).
Hauv cov txheej txheem ntub dej FGD ntawm cov cement nroj tsuag, 316L stainless hlau woven mesh yog siv los ua ib qho kev tshem tawm cov pos nphuab los ntes sulfur dioxide (SO₂) thiab cov teeb meem me me (Ntau dua lossis sib npaug ntawm 45μm). Nws tiv taus qhov kub thiab txias thiab acidic slurry ua kom ntev - lub sij hawm ruaj khov, ua tiav 85% + kev tshem tawm plua plav.



4. Semiconductor Manufacturing
Ultra-High-Purity (UHP) Gas Delivery ​: Electropolished 316L mesh tshem tawm cov sub-micron particulates ​​hauv argon/nitrogen mov kab.



5. Kev kho roj av
Methane & VOC Lim: Dub 304 mesh lim methane thiab volatile organics thaum tiv thaiv humid H₂S corrosion.
