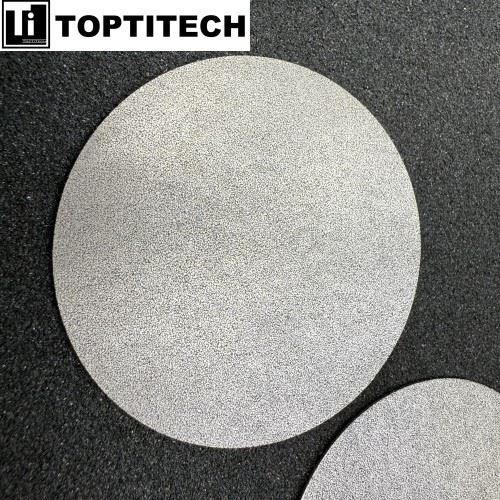

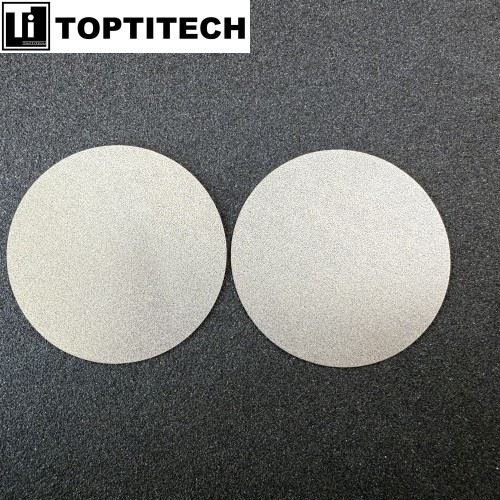

Nyob rau hauv precision electrolysis thiab electrochemical machining, lub uniformity thiab corrosion kuj ntawm diffusion txheej ncaj qha txiav txim cov khoom yield thiab electrode lub neej. Qhov no titanium lim phaj los ntawm TOPTITECH-50mm inch, 0.5mm nyob rau hauv thickness, thiab 20μm nyob rau hauv kiag li pom kev ntsuam xyuas- yog tsim los siv high-purity titanium hmoov los ntawm peb cov txheej txheem tseem ceeb: compression molding, nqus sintering, thiab precision laser txiav. Thaum lub tshuab nqus tsev sintering, tswj atomic diffusion thiab caj dab kev loj hlob tshwm sim ntawm titanium hais, tsim ib tug peb-dimensional interconnected ntxeem tau qauv nrog ib tug nruj pore loj tis.

Cov phaj lim dej no tswj kev ruaj ntseg mus ntev hauv cov kua qaub uas muaj zog, muaj zog alkalis, thiab cov fluoride-muaj cov electrolytes. Cov qauv ultra-nyias 0.5mm zoo heev txo cov kev tiv thaiv sab hauv thiab kev sib xyaw polarization hauv electrolytic cell, thaum lub 20μm pom kev ntsuam xyuas zoo cuam tshuam anode slime thiab byproduct hais, tiv thaiv ion-exchange membranes lossis diaphragms. Raws li lub hauv paus tseem ceeb ntawm cov tshuab electrolysis, nws yog qhov tsim nyog rau ob qho tib si hauv chav kuaj cov hlwb thiab cov qauv kev lag luam, txhim kho kev ua haujlwm tam sim no thiab cov khoom sib xws.

Khoom Specifications

Khoom siv: Gr1 titanium

Txoj kab uas hla: 50mm

Thickness: 0.5 hli

Pom tseeb: 20 micron

Cov txheej txheem: sintering

Khoom nta

Precise Porous Structure rau Uniform Flow

Porosity nce mus txog 30-40% tom qab sintering, nrog peb-dimensional tortuous micro-channels uas tsim micro-turbulence thaum lub sij hawm electrolyte dhau, tshem tawm cov chaw tuag thiab ua kom tam sim no ceev variation qis dua 5%.

Ultra-Thin tseem muaj zog, tsis tshua muaj siab thiab ua haujlwm siab

Ntawm 0.5mm thickness, nws muab cov qauv rigidity (khoov lub zog ntau dua lossis sib npaug ntawm 120MPa) nrog qhov tsis tshua muaj dej tsis kam, txo qis siab los ntawm kwv yees li 40% piv rau cov pa 1mm titanium daim hlau, uas txo qis zog siv zog.

Zoo Corrosion Resistance & Lub neej ua haujlwm ntev

Lub titanium substrate spontaneously tsim ib tuab TiO₂ passive zaj duab xis nyob rau hauv anodic oxidation tej yam kev mob, withstanding electrolytes ntawm pH 0-14 thiab chloride concentrations txog 200g / L, thiab xa ib tug tas mus li kev khiav hauj lwm lub neej tshaj 8,000 teev.

Controllable Precision & Lot-rau-Lot Consistency

Txhua batch tau kuaj xyuas siv lub npuas taw tes pore loj analyzer thiab 3D optical profileometer los lav qhov kev pom tseeb ntawm 20μm, nrog rau qhov pore loj sib txawv tsawg dua lossis sib npaug li 3μm ntawm cov khoom siv, yooj yim rau cov txheej txheem electrolysis.

daim ntawv thov

Chlor-Alkali Electrolysis

Siv raws li anodic diffusion txheej nyob rau hauv ion-exchange membrane hlwb, nws uniformly faib saturated brine thiab sau chlorine gas thaum thaiv cov txheej txheem detached, tiv thaiv daim nyias nyias los ntawm kev puas tsuaj.

Hydrometallurgy (Copper, Nickel, Cobalt Electrowinning)

Txhim kho raws li qhov nruab nrab diffusion txheej nruab nrab ntawm cathode thiab anode, nws txhim kho cov hlau ion loj hloov, txo qhov kev pheej hmoo ntawm kev loj hlob dendrite, thiab txuas ntxiv lub voj voog cathode stripping ntau dua 30%.

Hydrogen Production los ntawm Dej Electrolysis

Kho raws li anodic porous thauj txheej (PTL) nyob rau hauv PEM electrolyzers, nws txhawb ceev npuas detachment ntawm tsawg voltages (1.8-2.2V), txo ohmic polarization, thiab tsub kom hydrogen ntau lawm efficiency los ntawm 12-18%.

Electrochemical Synthesis (Tshwj xeeb Chemical / Pharmaceuticals)

Siv nyob rau hauv lub chaw soj nstuam los yog pilot-scale electrolysis cov cuab yeej ua ib qho kev txhawb nqa diffusion txheej rau kev ua hauj lwm electrode, kom ntseeg tau tias cov reactant sib cuag nrog lub electrode nto -tshwj xeeb tshaj yog tseem ceeb heev rau cov txheej txheem zoo synthesis yuav tsum tau nruj tswj ntawm sab kev xav.
