Porous hlau sintered bronze lim los xijyog tshwj xeeb filtering Cheebtsam tsim los ntawm ib tug sintering txheej txheem siv bronze hmoov los yog bronze alloy hmoov. Cov ntawv lim dej no muaj ntau lub qhov hws me me uas tso cai rau kev nkag mus ntawm cov kua lossis roj thaum ntes thiab lim cov khoom, impurities, lossis lwm yam kab mob hauv lawv.

Cov txheej txheem ntau lawm feem ntau suav nrog cov kauj ruam hauv qab no:

Ua cov kauj ruam

Kev npaj raw khoom

High-zoo bronze hmoov los yog alloy hmoov yog xaiv raws li cov khoom siv raw. Qhov loj me me thiab muaj pes tsawg leeg ntawm cov hmoov no feem ntau txiav txim siab raws li qhov yuav tsum tau ua ntawm cov khoom kawg.

Mixing thiab Compacting

Bronze hmoov yog uniformly tov nrog tej zaum additives los txhim kho nws flowability thiab compressibility. Cov sib tov yog muab tso rau hauv pwm thiab mechanically compacted siv high-pressure machinery los tsim ua ntej daim ntawv-zoo li tus los yog disc-shaped khoom.

Sintering

Cov khoom, tom qab compaction, undergo sintering nyob rau hauv high-temperature mob. Thaum lub sij hawm tus txheej txheem no, diffusion welding tshwm sim ntawm cov bronze hmoov hais, tsim robust hlau bonding cov ntsiab lus thaum tsim porosity, uas txiav txim siab qhov kawg pore qauv thiab pore loj.

Machining thiab Shaping

Tom qab sintering, cov khoom yuav xav tau ntxiv machining thiab shaping, xws li trimming npoo los yog polishing nto, los xyuas kom meej.

Khoom Specifications

Khoom siv	Bronze, tooj
Filtration raug	30-40μm
Siv tau qhov kub thiab txias	Tsawg dua los yog sib npaug li 300 degree
txoj kab uas hla	25 hli
tuab	2 hli

Khoom Feature

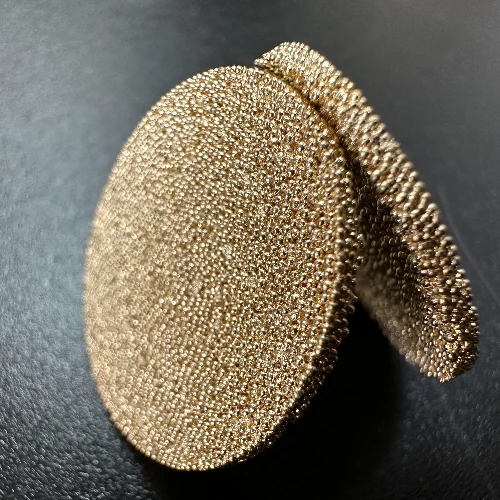

Porous metal sintered bronze filter sheet for filtering gas and liquid

Precise Pore Structure:Cov qauv pore tsim los ntawm cov txheej txheem sintering nthuav tawm cov qib siab ntawm kev sib xws thiab meej qhov pore loj faib, zoo lim cov feeb thiab impurities.

Zoo heev Filtration Performance:Cov pores pab hauv kev ntes thiab lim cov khoom tsis zoo, impurities, lossis precipitates hauv cov kua lossis roj, xa cov txiaj ntsig zoo.

Corrosion Resistance thiab Durability:Bronze muaj qhov muaj zog tiv thaiv corrosion thiab hnav tsis kam, ua rau cov lim dej no tsim nyog rau kev tuav ntau hom tshuaj lossis corrosive media.

Cleanable thiab Reusable:Cov ntsiab lus lim tau yooj yim ntxuav, tso cai rau ntau yam kev siv, thiab lawv tuav lawv cov duab thiab kev ncaj ncees ntawm ntau lub voj voog ntawm kev siv.

Porous Brass Filter Disc For Pneumatic Air Filter 2

FAQ

01.Dab tsi yog qhov loj ntawm daim ntawv lim?

Cov porous hlau sintered bronze lim yog tsim los ntawm kev siv spherical bronze hmoov muab tso rau hauv preprocessed pwm thiab ces zoo li tus los ntawm high-temperature sintering. Qhov loj me me ntawm cov hmoov bronze yog li ntawm 20 txog 300 mesh, thiab cov kab sib txawv ntawm cov hmoov bronze ua rau muaj qhov sib txawv ntawm qhov ntau thiab tsawg hauv cov bronze lim, nrog qhov tseeb ntawm 3 txog 100 micrometers. Ib tug ntau dua mesh suav txhais tau tias me me pores.

Tsis tas li ntawd, vim qhov xwm txheej ntawm pwm shaping, qhov ntev thiab cov duab tuaj yeem kho raws li qhov tshwj xeeb ntawm cov tuam txhab sib txawv.

02.Dab tsi yog qhov zoo ntawm sintering tshaj kev sib txuas?

Sintering tsis yog adhesion. Sintering feem ntau tswj cov khoom siv melting point. Sintered lim cores muaj lub zog zoo, tuaj yeem ua tshuab, riveted, thiab ntxuav los ntawm kev rov qab ntxuav. Tsis tas li ntawd, lawv tiv taus qhov kub thiab txias thiab ua rau cov khoom siv lim.

03.Dab tsi yog qhov zoo ntawm sintered bronze lim ntawv?

Cov khoom no yog tsim los ntawm bronze alloy hmoov los ntawm high-temperature sintering, uas ua rau uniformly ruaj khov pores. Lawv muab siab filtration precision, muab zoo purification los nrog tsawg kawg siab poob. Tsis tas li ntawd, lawv muaj suab nrov txo thiab muaj peev xwm nqus suab.

04.Dab tsi yog daim ntawv thov ntawm sintered bronze lim ntawv?

Cov ntawv thov muaj xws li lim roj, kua, thiab roj roj. Lawv tau siv dav hauv kev lag luam xws li roj av, tshuaj lom neeg, tsheb, tsheb laij teb, aircraft, thiab marine. Tsis tas li ntawd, lawv pom kev siv dav hauv kev lim cov khoom hauv pneumatic thiab hydraulic circuits.
