TOPTITECH's φ80mm SS316L Sintered Porous Lim Lub tog raj kheej rau Decarburization pom yog qhov siab -kev ua haujlwm tsis zoo ntawm cov hlau ntxeem tau tsim los rau cov khoom tseem ceeb- roj sib cais hauv siab- txheej txheem kub. Lub tog raj kheej no, tsim los ntawm 316L stainless hlau hmoov, ua tiav cov porosity zoo ib yam thiab micron - qib pom tseeb los ntawm kev tswj sintering nyob rau hauv lub tshuab nqus tsev. Nws cov qauv monolithic sintered muab qhov tshwj xeeb siab - kub compressive zog, intergranular corrosion kuj, thiab thermal shock stability, ua kom ntseeg tau kev lag luam nyob rau hauv ib puag ncig uas polymeric lossis fibrous media yuav degrade.

Hauv decarburization thiab catalyst rov qab daim ntawv thov, lub tog raj kheej lim no ua kom muaj qhov siab tshaj plaws khaws cia thiab cov txheej txheem roj purity. Cov qauv tsim los ntawm cov pore zoo ua kom yooj yim rau qhov pib permeability thaum muab qhov chaw- hom pom, uas txhawb nqa lub ncuav mog qab zib kom zoo thiab txhim khu kev tu ntawm rov qab - pulse regeneration. Nws cov qauv tsim muaj kev ruaj ntseg zoo nyob rau hauv cyclic thermal thiab siab loads, txo qis downtime rau kev txij nkawm. Chav tsev qhov kev ua tau zoo ib yam ncaj qha txuas rau lub neej kev pabcuam catalyst, txo cov hydrocarbon nqa mus, thiab txo qis tag nrho cov nqi ua haujlwm los ntawm kev rov tsim dua tshiab yam tsis muaj kev tawm mus los lossis kev qaug zog.

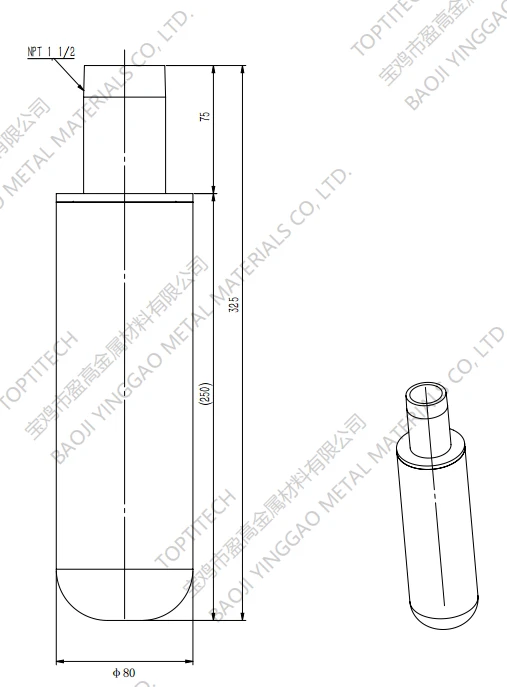

Khoom Specifications

Khoom siv: SS316L
Txoj kab uas hla: 80mm
Ntev: 325mm
Pore loj: 5um
Cov txheej txheem: Sintering

Khoom nta

Engineered Pore Structure & Fidelity

Lub tog raj kheej lub porosity yog engineered los ntawm precisely graded 316L hmoov thiab diffusion sintering, yielding ib tug nruj, interconnected pore network. Qhov no ua kom pom tseeb qhov ntsuas ntawm 5 mus rau 40 microns nrog qhov ua npuas zoo sib xws, tiv thaiv cov khoom siv hluav taws xob zoo los yog cov pa roj carbon plua plav los ntshav -los ntawm hauv decarburization loops.

Superior High -Tsuas Cov Txheej Txheem Kev Ncaj Ncees

Nws cov monolithic sintered matrix tswj qhov ruaj khov thiab lub zog compressive ntawm qhov kub thiab txias mus txog 480 degree. Qhov no tiv thaiv creep deformation los yog vau nyob rau hauv cyclic thermal loads thiab system rov qab -pulse pressures.

80mm SS316L Sintered Porous Filter Cylinder for Decarburization Filtration 2

80mm SS316L Sintered Porous Filter Cylinder for Decarburization Filtration 4

Corrosion & Oxidation Resistance

Lub siab -chromium, qis-carbon 316L alloy, sintered nyob rau hauv ib tug txo qhov cua, muab tshwj xeeb kuj rau intergranular corrosion thiab oxidation. Qhov no ua kom lub neej ntev hauv cov txheej txheem ntws uas muaj hydrogen, chav, thiab hydrocarbons ntawm qhov kub siab.

Regeneration Efficient & Long Service Life

Qhov saum npoo - hom pom tshuab ua kom yooj yim tsim cov ncuav mog qab zib sai thiab tso tawm kom huv. Cov khoom tiv taus ntau dua 10,000 thim rov qab- ntws rov qab-pulse tu cycles yam tsis muaj xov xwm qaug zog los yog qhov pore plugging, txo cov zaus hloov pauv thiab tag nrho cov tswv cuab tus nqi.

High Permeability nrog qis qis qis qis qis

Optimized pore geometry thiab niaj hnub porosity faib ua tiav cov pa permeability siab, ua rau qis qis qis qis (feem ntau qis dua 3 kPa ntawm nominal flow). Qhov no txo qis kev siv zog rau compression thaum tswj cov av siab - tuav lub peev xwm.

Kev tsim kho muaj zog rau kev pabcuam tseem ceeb

Tsim los ntawm txias isostatic nias thiab siab -kub sintering, lub tog raj kheej tsis muaj welds los yog seams nyob rau hauv lub lim nruab nrab. Qhov no tshem tawm cov ntsiab lus tsis muaj zog, ua kom muaj kev ntseeg siab hauv siab - siab (txog 6.9 MPa) thiab siab -kev co decarburization reactor ib puag ncig.

80mm SS316L Sintered Porous Filter Cylinder for Decarburization Filtration 3

Daim Ntawv Thov Hauv Decarburization Lim

Reactor Effluent Guard Filter

Lub tog raj kheej no nruab ncaj qha rau hauv lossis qis qis ntawm hydrocracker lossis hydrotreater lub reactor qhov hluav taws xob lub nkoj. Nws ua hauj lwm nyob rau hauv tag nrho cov system siab thiab kub los ua thawj pom, ntes entrained catalyst nplua thiab coke hais los ntawm kub, hydrogen- nplua nuj txheej txheem kwj ua ntej nws nkag mus rau downstream heat exchangers.

Catalyst Bed Support thiab Retention Media

Ntau lub tog raj kheej lim tau siv nyob rau hauv tib lub sijhawm nyob rau hauv lub nkoj catalyst tshwj xeeb. Lawv ua hauj lwm raws li ib tug neeg kho tshuab barrier, tiv thaiv kev tsiv teb tsaws ntawm catalyst hais los ntawm lub ntsiab reactor txaj thaum lub sij hawm ib txwm ua hauj lwm, chim siab, los yog thaum lub sij hawm reactor unloading txheej txheem, kom ntseeg tau tias catalyst cov khoom lag luam tswj.

Kub Hydrogen Regeneration Cycle Component

Thaum lub sij hawm catalyst regeneration cycles, lub lim los ua ke tseem nyob hauv kev pabcuam. Nws tiv taus qhov hloov pauv los ntawm hydrocarbon- cov kwj dej nplua nuj rau cov roj hydrogen kub siv rau coke hlawv- tawm, tsis tu ncua lim cov roj rov ua dua tshiab kom tshem tawm cov teeb meem tsis zoo thiab tiv thaiv lub voj voog compressor.

Continuous Catalyst Recovery Filter Crossflow Filter or Two Switching Filters

Siab -Nias Rov Qab-Pulse System Core Element
Kev koom ua ke rau hauv ib qho rov qab automated -pulse skid, lub lim dej no raug luv luv, siab - nrawm tawg ntawm siab - siab nitrogen los yog cov txheej txheem huv si. Qhov no discrete PLC- tswj cov kab nrib pleb tawg thiab dislodges lub ncuav mog qab zib lim, tso tawm cov khoom khib nyiab mus rau hauv lub nkoj siab rau kev tshem tawm ib ntus.

Kev tiv thaiv rau Centrifugal Recycle Gas Compressors
Nruab rau ntawm qhov nqus dej ntawm hydrogen recycle compressor, lub lim cartridge muab qhov kawg tshem tawm. Daim ntawv thov tseem ceeb no tiv thaiv kev hnav khaub ncaws ntawm compressor impellers thiab fouling ntawm nruab nrab txias txias, ncaj qha txhawb nqa compressor efficiency thiab ncua ntev.

Tsau -Bed Reactor Feed Polishing Filter
Nyob rau hauv cov txheej txheem xws li diesel hydrotreating, lub caij no ua hauj lwm pab raws li ib tug zaum kawg polishing theem rau kev sib xyaw pub (hydrocarbon + hydrogen) nkag mus rau hauv ruaj - txaj reactor. Nws tiv thaiv lub hauv paus catalyst txaj los ntawm cov yeeb nkab dej ntws los yog cov khoom siv corrosion uas tuaj yeem ua rau muaj kev poob siab thiab kev xa mus.
