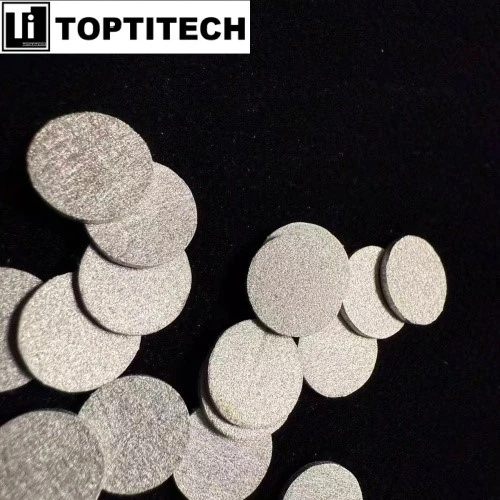

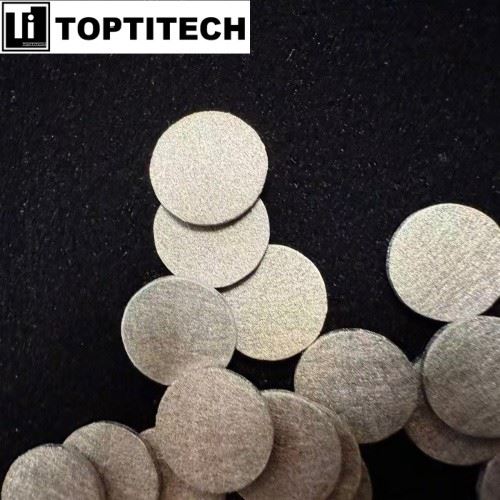

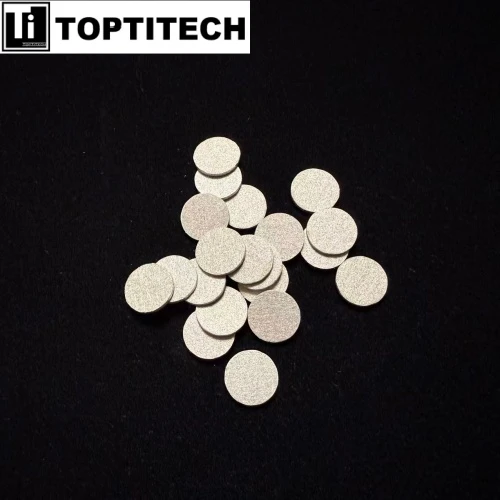

Titanium Fiber Ntawv φ10 * 1mm Kub Kub Resistant Substrate

Titanium Fiber Ntawv φ10 * 1mm High Temperature Resistant Substrate yog engineered raws li siab -porosity, sintered hlau qauv, xa tshwj xeeb kev ua tau zoo nyob rau hauv xav tau thermal thiab electrochemical ib puag ncig. Nws tau tswj hwm cov fiber ntau matrix, uas muaj 12-micron txoj kab uas hla titanium fibers, ua kom zoo dua cov qauv kev ncaj ncees thiab pore uniformity nyob rau hauv lub compact φ10 * 1mm daim ntawv zoo. Qhov tseeb engineering no tsim cov porosity ntau ntawm 70% mus rau 80%, uas yog ib qho tseem ceeb rau kev siv roj diffusion thiab electrolyte permeation. Qhov no ua rau nws tshwj xeeb tshaj yog siv los ua Gas Diffusion Layer (GDL) lossis Porous Transport Layer (PTL) hauv PEM electrolyzers thiab roj hlwb, qhov uas nws pab txhawb kev faib cov reactant thiab ua haujlwm ua cov khoom siv tam sim no. Lub hauv paus corrosion tsis kam ntawm cov khoom lag luam ntshiab titanium qib (TA1) muab lub sijhawm ntev tiv thaiv kev tawm tsam.

Rau cov ntawv tshwj xeeb uas xav tau lub neej ua haujlwm siab tshaj plaws, Titanium Fiber Ntawv φ10 * 1mm High Temperature Resistant Substrate tuaj yeem ua tau zoo ntxiv nrog kev hloov kho saum npoo av. Daim ntawv thov ntawm platinum los yog kub txheej los ntawm platinization yog ib qho kev pom zoo los tiv thaiv kev tsim cov hluav taws xob insulating titanium oxide (TiO₂) txheej ntawm qhov siab -surface- cheeb tsam 12-micron fibers, uas tuaj yeem ua rau muaj kev cuam tshuam loj hauv kev sib cuag nrog oxygen, tshwj xeeb tshaj yog nyob rau hauv siab -. Qhov kev ruaj ntseg ruaj khov ntawm qhov chaw chemistry no ua kom muaj kev ua tau zoo ntawm electrochemical thiab txhim kho kev ntseeg tau, ua rau nws yog ib qho zoo tshaj plaws substrate rau siab - kub khiav hauj lwm thiab lub hauv paus ruaj khov rau catalytic txheej hauv cov txheej txheem electrochemical siab heev. Kev sib xyaw ua ke ntawm qhov tshwj xeeb φ10 * 1mm qhov ntev thiab nplua 12-micron fiber ntau qauv tsim lub platform zoo rau kev kho mob saum npoo uas txhim kho kev ua haujlwm ntev hauv kev thov.

• Khoom siv: GR1 Titanium
• Txoj kab uas hla: 10mm
• Thickness: 1 hli
• Fiber ntau: 12um
• Cov txheej txheem: Sintering thiab laser txiav

Optimized 12-micron fiber ntau txoj kab uas hla ua kom thaj chaw loj tshaj plaws rau kev txhim kho catalytic kev ua haujlwm thiab cov roj permeability zoo dua hauv kev thov cov ntaub ntawv siv hluav taws xob xws li PEM electrolyzer stacks thiab SOFC systems.

Precisely tswj 70-80% porosity ntau enables tailored pore architectures rau tshwj xeeb loj thauj yuav tsum, ho txhim kho reactant tis thiab byproduct tshem tawm raws li advanced Porous Transport Layers (PTL).

Tshwj xeeb siab - qhov kub ntawm cov qauv kev ruaj ntseg tswj qhov kev ncaj ncees nyob rau hauv thermal cycling tej yam kev mob mus txog 500 degree, tiv thaiv kev ua hauj lwm degradation nyob rau hauv roj cell thiab filtration ua hauj lwm.

Kev hloov kho saum npoo av muaj peev xwm lees txais platinum lossis cov txheej kub kub uas tiv thaiv TiO2 tsim tau zoo, txo qis kev sib cuag ntawm lub ntsej muag thaum ua kom ntev -lub sij hawm electrochemical stability.

• PEM Electrolyzer Systems - Ua haujlwm raws li qhov tseem ceeb Cov Txheej Txheem Kev Thauj Mus Los (PTL) ua kom yooj yim hydrogen ntau lawm los ntawm kev ua kom zoo dua cov roj diffusion thiab muaj peev xwm sau tam sim no.
• High-Tub kub roj Cell Stacks - Ua hauj lwm raws li qib siab Gas Diffusion Layers (GDL) nyob rau hauv SOFC systems, tswj cov txheej txheem stability nyob rau hauv huab cua kub caij tsheb kauj vab.
• Aerospace Thermal Management - Muab lub teeb yuag thermal rwb thaiv tsev thiab kev co damping kev daws teeb meem rau spacecraft propulsion systems thiab avionics cooling applications.

• Industrial Hot Gas Filtration - Ua kom cov khoom zoo tshem tawm los ntawm qhov siab -kub txheej txheem ntws hauv metallurgical thiab tshuaj ua haujlwm.
• Electrochemical Reactor Designs - Txhawb kev koom ua ke catalyst thiab reactant tis nyob rau hauv tshwj xeeb reactor configurations rau hluavtaws roj tsim thiab tshuaj synthesis.
• Advanced Energy Storage Systems - Txhim khu kev ua tau zoo hauv -tiam hlau- cov roj teeb cua tom ntej los ntawm kev ua kom zoo dua oxygen diffusion thiab electrolyte tswj peev xwm.

Cov kev qhia tshwj xeeb ntawm 12-micron fiber ntau txoj kab uas hla yog qhov tseem ceeb ntawm engineering parameter hauv titanium fiber ntau, xa cov kev ua tau zoo sib txawv ntawm cov ntaub uas ua los ntawm cov fibers tuab. Nws cov txiaj ntsig tseem ceeb yog los ntawm kev hloov pauv cov khoom siv cov qauv geometric thiab muaj peev xwm sib cuam tshuam ntawm qhov chaw.

1. Txhim kho thaj chaw tshwj xeeb & Catalytic Support

Ib txoj kab uas hla 12-micron tsim ib qho chaw loj dua qhov chaw nyob hauv tib lub ntim piv rau cov coarser fibers. Qhov chaw nthuav dav no muab ntau qhov chaw ua haujlwm rau kev siv cov txheej txheem hlau zoo li platinum lossis kub. Qhov tshwm sim yog kev ua haujlwm catalytic zoo dua thiab muaj txiaj ntsig zoo dua tiv thaiv kev tsim cov hluav taws xob insulating TiO₂, uas yog qhov tseem ceeb rau kev tswj xyuas kev sib cuag tsis tshua muaj nyob hauv cov hlwb electrochemical.

2. Optimized Pore Structure & Capillary Action

Fibers ntawm no fineness pab tsim kom muaj ib tug ntau uniform thiab intricate network ntawm me me, hierarchical pores. Qhov kev ua kom zoo nkauj no tso cai rau kev ua haujlwm zoo tshaj plaws ntawm capillary thiab kev tswj xyuas electrolyte hauv Porous Transport Layers (PTLs), ua kom yooj yim rau cov khoom xa tuaj thiab tshem tawm cov khoom. Nws ua tiav qhov kev pom zoo sib npaug ntawm cov neeg kho tshuab kev ruaj ntseg thiab kev thauj mus los tsawg tsawg.

3. Txhim kho Gas Diffusion Efficiency

Qhov ntom ntom ntom ntom, zoo-fiber matrix ua rau ntau qhov pores me me rau ib cheeb tsam. Cov yam ntxwv no yog qhov tseem ceeb rau kev ua haujlwm raws li Gas Diffusion Layer (GDL), vim nws txhawb nqa cov pa roj ntau dua thoob plaws tag nrho cov dej ntws. Qhov no tiv thaiv cov chaw kub hauv cheeb tsam thiab ua kom muaj kev sib faib tam sim no, yog li txhim kho tag nrho cov kev ua tau zoo thiab kav ntev ntawm cov roj hlwb thiab cov electrolyzers.

4. Superior Mechanical Ua Raws & Sealing

Qhov yooj yim ntawm 12-micron fibers tso cai rau cov kev xav tau yooj yim dua nyob rau hauv compression. Qhov no tsim kom muaj txiaj ntsig zoo dua tiv thaiv cov phiaj xwm bipolar hauv ib pawg ntawm tes, txo cov roj sib txuas thiab txo qis kev sib cuag. Cov fibers finer faib compressive stresses ntau tusyees, txhim khu cov kev xav ntawm durability thiab lub sij hawm ntev structural kev ncaj ncees nyob rau hauv mechanical load thiab thermal cycling.
