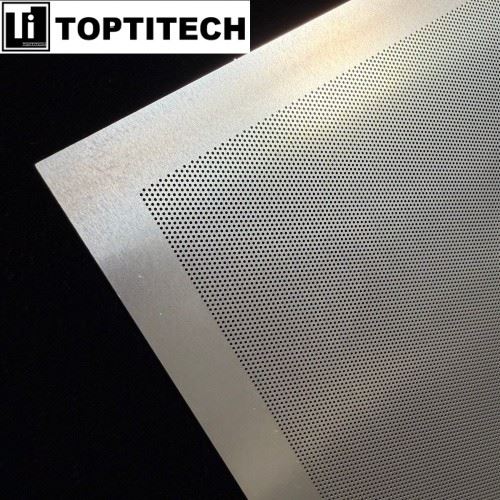

0.2 hli Thickness SS316L Perforated Sheet Rau Fine Liquid Filtration

TOPTITECH's 0.2mm Thickness SS316L Perforated Sheet rau Fine Liquid Filtration yog tsim los siv photochemical etching. Cov txheej txheem precision no xaiv cov khoom siv los tsim cov ntawv teev 0.3mm apertures, ua tiav qhov tseeb ntawm qhov geometry nrog kev kam rau siab feem ntau hauv ± 0.01mm. Cov txheej txheem etching ua tau zoo kawg nkaus du, burr- dawb lub qhov phab ntsa thiab khaws cia SS316L substrate tag nrho metallurgical kev ncaj ncees. Qhov tsis muaj kev ntxhov siab los yog kev ua haujlwm nyuaj ua kom cov khoom tswj xyuas nws qhov zoo tshaj plaws corrosion tsis kam, tus cwj pwm los ntawm Pitting Resistance Equivalent Number (PREN) ntau tshaj 28, thiab lav cov khoom tsis sib xws ntawm txhua daim ntawv.

0.2 hli thickness

0.3mm pore loj

Qhov kev tsim kho no ncaj qha txhais mus rau kev pom zoo dua. Lub 0.2mm Thickness SS316L Perforated Sheet rau Fine Liquid Filtration muab cov khoom pov thawj zoo raws li nws qhov loj me me. Lub hydrodynamically npaum, du apertures txhawb laminar txaus, txo siab poob, thiab txo qhov txhaws. Ua ke nrog cov khoom siv tshuaj lom neeg tsis zoo ntawm SS316L, daim ntawv no muaj kev ntseeg siab, ntev - kev pabcuam hauv kev tawm tsam hnyav rau cov ntawv thov tseem ceeb suav nrog cov txheej txheem tshuaj lom neeg pom, cov roj precision thiab cov tshuab ua kom txias, thiab siab - cov zaub mov huv lossis kev ua tshuaj. Nws cleanability thiab cov qauv kev ruaj ntseg txhawb rov siv dua nyob rau hauv xav tau kev lag luam ib puag ncig.

• Khoom siv: SS316L
• Loj: 650x410mm
• Thickness: 0.2 hli
• Pore ​​loj: 0.3mm

Precision Aperture Geometry



Cov txheej txheem photochemical etching tsim qhov tseeb 0.3mm apertures, kom ntseeg tau qhov tseeb thiab zoo ib yam. Qhov no tshem tawm bypass thiab lav txhim khu kev pom kev txiav tawm rau cov txheej txheem xav tau kev sib cais hauv 300-micron ntau.

Burr-Dawb, Hydrodynamically Smooth Qhov Phab Ntsa



Tsis zoo li mechanically punched los xij, etching tsim apertures tsis muaj microburrs lossis deformed npoo. Qhov saum npoo du no txo ​​qis cov dej turbulence, txo qhov kev poob siab, thiab txo qhov kev pheej hmoo ntawm qhov adhesion thiab media blinding.

Tswj Metallurgical Integrity thiab Maximum Corrosion Resistance



Txoj kev tsis yog -kev sib cuag etching induces xoom ua hauj lwm hardening los yog residual kev nyuaj siab, khaws cia SS316L substrate tag nrho annealed ductility. Cov khoom khaws cia nws qhov zoo tshaj plaws Pitting Resistance Equivalent Number (PREN> 28), muab kev tiv thaiv zoo tshaj rau cov tshuaj chlorides, acids, thiab caustics piv rau kev ua hauj lwm - hardened lwm txoj.

Exceptional Cleanability thiab Sterilization Capability



Kev sib xyaw ua ke ntawm pristine 2B tiav, du phab ntsa aperture, thiab inert SS316L nto tso cai rau kev tu kom huv si siv CIP (Clean-hauv-Qhov chaw) raws tu qauv. Daim ntawv tiv taus rov ua kom tsis muaj menyuam los ntawm autoclaving lossis tshuaj tua kab mob tsis muaj degradation.

High Open Area nrog cov qauv ruaj khov



Precise etching tso cai rau optimized lub qhov qauv uas ua kom qhib qhov chaw kom txaus thaum lub 0.2mm thickness thiab unaltered khoom temper muab tsim nyog rigidity. Qhov kev sib npaug no ua kom muaj kev ncaj ncees nyob rau hauv vibrating lim cov rooj sib txoos lossis nyob rau hauv qhov sib txawv siab yam tsis muaj kev pheej hmoo ntawm kev qaug zog.

High -Purity Chemical thiab Solvent Processing

Daim ntawv no ua haujlwm tseem ceeb hauv kev txhawb nqa mesh lossis cov lim dej ncaj qha hauv kev tsim cov ultra- ntshiab acids, photoresists, thiab semiconductor- qib cov kuab tshuaj. Lub burr-dawb 0.3mm apertures thiab electropolished SS316L nto tiv thaiv kev kis kab mob los ntawm cov hlau ions los yog cov khoom me me, qhov tseem ceeb rau kev tswj cov kua dej huv hauv kaw- lub voj voog thiab ua tau raws li cov qauv kev lag luam nruj.

Precision Roj, Hydraulic, thiab Lubrication Systems

Cov tivthaiv muab kev pom zoo hauv kev pom rau aviation roj, siab -kev ua haujlwm hydraulic fluids, thiab hluavtaws lubricants. Nws qhov aperture geometry zoo ib yam ua kom ruaj khov particle retention, thaum nws PREN > 28 corrosion kuj lav ntev -lub sij hawm kev ncaj ncees tiv thaiv biocontaminants, dej ingress, thiab additive tej pob khoom yam tsis muaj kev pheej hmoo ntawm lim xov xwm degradation.

Tshwj xeeb Industrial Membrane Txhawb thiab Tiv Thaiv

Daim ntawv ua raws li cov txheej txheem tiv thaiv zoo tshaj plaws thiab kev txhawb nqa substrate rau cov mos mos polymer lossis ceramic membranes hauv cross-flow filtration thiab thim rov qab osmosis systems. Nws qhov chaw qhib meej thiab nruj tsis tau nyias qhov profile muab kev pom zoo rov qab nrog qhov tsawg kawg nkaus poob, thaum nws cov tshuaj sib raug zoo tiv thaiv daim nyias nyias los ntawm cov dej khib nyiab thiab kev puas tsuaj.

Laboratory thiab Analytical Instrumentation Fluid Management

Hauv cov cuab yeej kuaj xyuas tseem ceeb, cov khoom siv ua haujlwm hauv cov kab autosampler, cov lim dej reagent, thiab chromatograph tiv thaiv modules. Lub photochemically etched geometry ua kom cov yam ntxwv rov ua dua, thiab cov khoom siv hauv paus ruaj khov tiv thaiv kev cuam tshuam nrog cov organic hnyav lossis cov buffers, kom ntseeg tau qhov tseeb analytical thiab ntsuas qhov ntev.

Ib txoj cai tseem ceeb hauv daim ntawv tsim perforated dictates tias aperture txoj kab uas hla yuav tsum tshaj cov khoom thickness. Lub hauv paus ntsiab lus ntawm engineering no yog los ntawm kev sib cuam tshuam hauv cov hlau stamping mechanics, tooling physics, thiab cov khoom coj tus cwj pwm. Rau 0.2 hli tuab SS316L daim ntawv, qhia txog qhov aperture Tsawg dua lossis sib npaug li 0.2 hli cuam tshuam cov khoom ncaj ncees thiab kev tsim khoom.

 Mechanical thiab Tooling txwv
Lub punch pin tus nam piv ua qhov tseem ceeb thaum aperture txoj kab uas hla mus txog cov khoom thickness. Ib tus pin txoj kab uas hla sib npaug ntawm 0.2mm daim ntawv tuab ua haujlwm ntawm qhov sib piv 1: 1, tsim kom tsis txhob muaj kev ntxhov siab thaum lub sij hawm stamping. Qhov no ua rau muaj kev cuam tshuam ntau dhau ntawm sab nraud, ua rau tus pin tawg sai thiab kev puas tsuaj tas mus li. Nyob rau tib lub sijhawm, kev tswj hwm qhov yuav tsum tau ua punch-rau- tuag tshem tawm ntawm 5-8% ntawm cov khoom tuab yuav ua tsis tau ntawm qhov ntsuas no, ua rau cov cuab yeej nrawm nrawm thiab tsis sib xws aperture zoo.

 Material Deformation thiab kev ua haujlwm zoo
Shearing 0.2mm aperture nyob rau hauv 0.2mm tuab SS316L induces hnyav yas deformation es tsis huv cov khoom sib cais. Cov kev ntxhov siab ntau dhau ntawm cov khoom siv qhov kawg tensile lub zog hauv zos, tsim ib qho torn ntug profile nrog micro- tawg. Qhov kev cuam tshuam ntug qauv no dhau los ua lub ntsiab lus tseem ceeb rau kev tawg tawm hauv kev thauj khoom thiab ua rau cov hlau tsis muaj zog corrosion los ntawm kev cuam tshuam nws cov txheej txheem oxide passive.

 Functional Performance Compromise
Apertures nrog txoj kab uas hla -rau-thickness ratios Tsawg dua los yog sib npaug rau 1 tsim dysfunctional flow paths. Hauv daim ntawv thov pom, qhov ntev channel txuas ntxiv ua rau muaj kev txwv tsis pub muaj kev poob siab thiab txhawb nqa qhov tsis pom kev nrawm. Cov qauv perforated kuj tseem ua rau cov ntawv tsis muaj zog dabtsi yog khoov thiab flatness, ua rau nws tsis haum rau txhua qhov chaw ua haujlwm siab lossis vibratory.

Kev lag luam kev coj ua zoo tshaj plaws tswj hwm qhov tsawg kawg nkaus aperture - rau -thickness ratio ntawm 1.2: 1, nrog 1.5: 1 yog qhov zoo rau cov ntawv thov raug. Daim ntawv teev 0.3mm aperture hauv 0.2mm tuab SS316L ua tiav qhov zoo tshaj plaws tshuav nyiaj li cas, ua kom huv huv, kev ua tau zoo txhim khu kev qha, thiab txuas ntxiv kev pab cuam lub neej hauv kev xav tau kev pom zoo.
